Blower Heater Purge Desiccant Dryer (SPBH)
SPBH Series Blower Heater Purge Desiccant Dryer
An economical model that regenerates with ambient air drawn in and heated by a blower, using only about 4% of the dried compressed air. It keeps compressed air consumption low while maintaining a stable low dew point.
The most economical of the purge types: SPBH

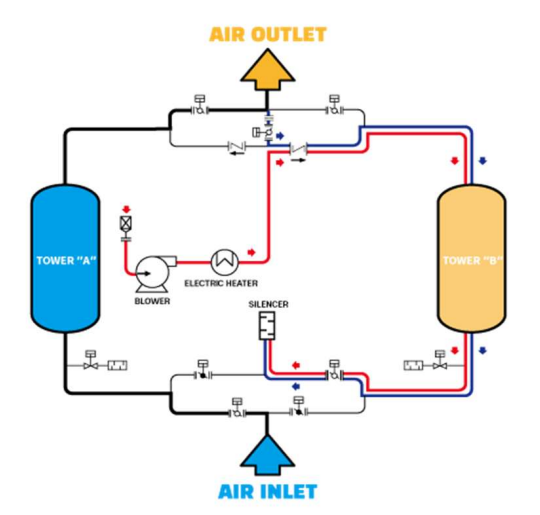

In the SPBH series, a blower draws in ambient air, which is heated and used to purge the tower,
while only about 4% of the dried outlet compressed air is used. Although it is a purge-type dryer, it is an economical model that sharply reduces compressed air consumption.
Key features
Economical product with reduced compressed air consumption (about 4%)
Stable low dew point
High-efficiency blower
Optimal operating cost through dew point-controlled operation
Standard conditions
Inlet air pressure | 7 barg (STD) |
Inlet air temperature | 40℃ (STD) |
Guaranteed outlet dew point | -40℃ (STD) |
Cycle time | 8 hr/cycle (4 hr adsorption, 4 hr regeneration) |
Standard specifications vary with site conditions. Please contact us for capacity.
Options
Modified inlet and outlet conditions (other than dew point)
PLC Controller & Touch Screen
Upper control valves (check valves as standard)
Alternative materials for lower and upper piping and vessels
Dew point-controlled operation (DPOS)
Sales inquiries
We design and build to your capacity and required dew point. After installation and commissioning, GENEQ remains responsible for maintenance and parts supply.
