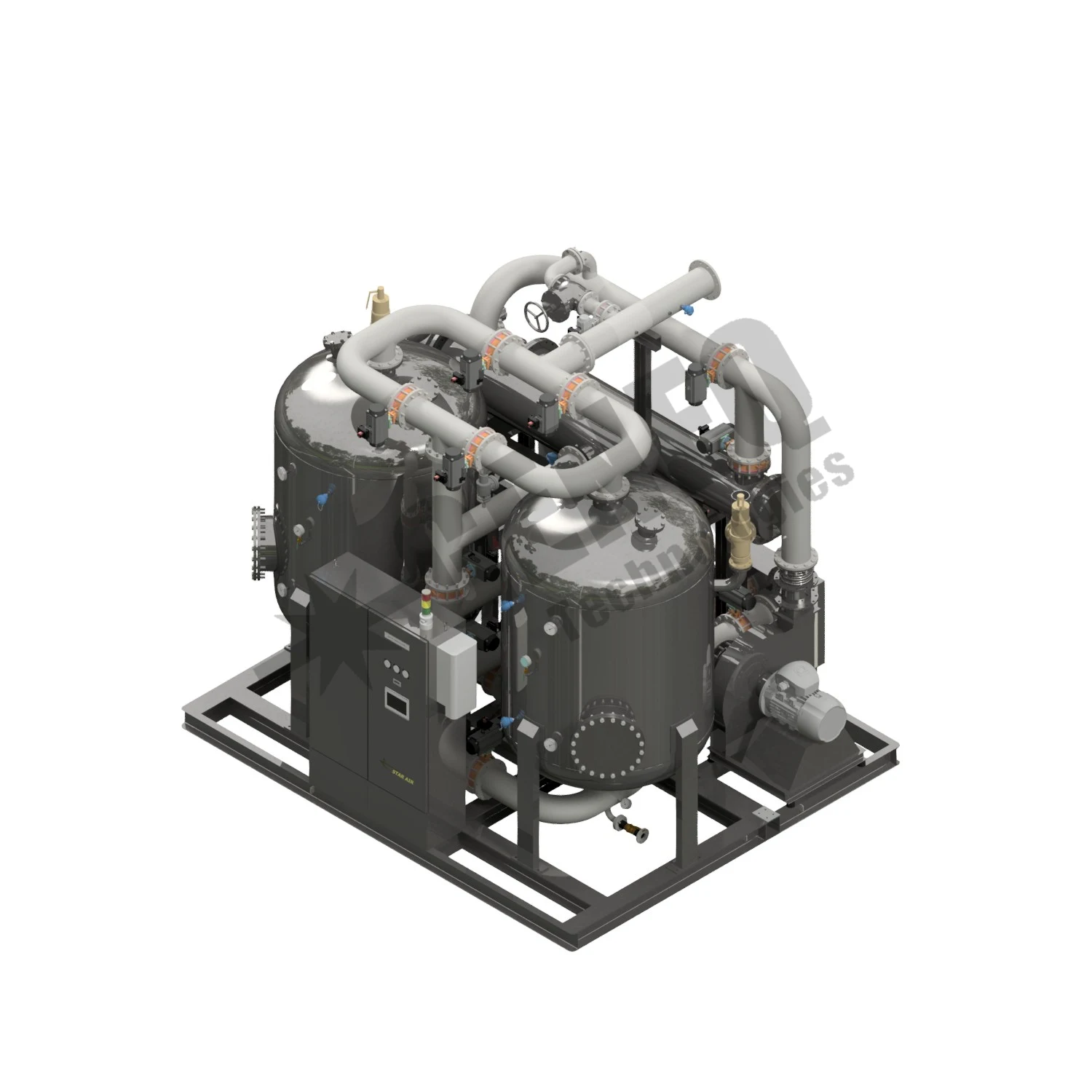

Blower Heater Non-Purge Desiccant Dryer (SNBH)
SNBH Series Blower Heater Non-Purge Desiccant Dryer
The flagship energy-saving model: a blower draws in ambient air for tower regeneration, so there is zero compressed air loss. A high-efficiency blower and low differential pressure keep the dew point stable.
The flagship energy saver with zero compressed air loss: SNBH

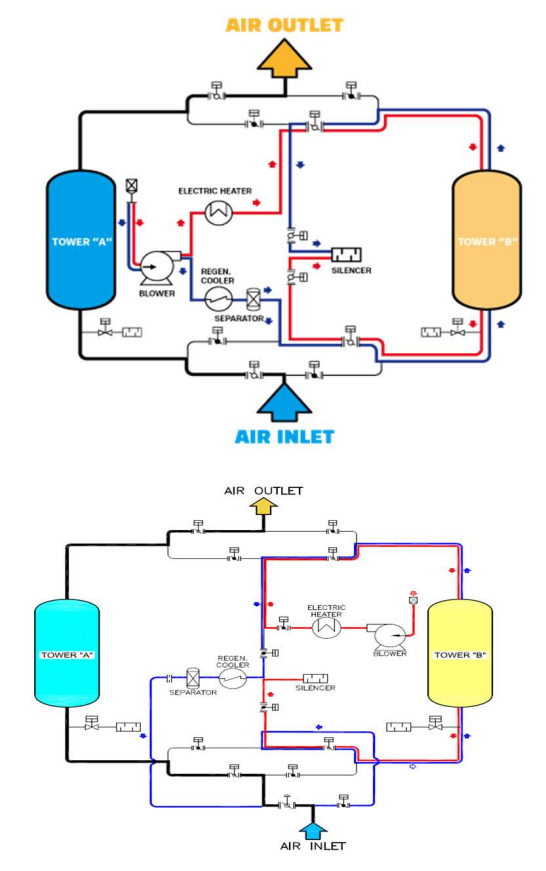

In the SNBH series, a blower draws in ambient air, which is heated and used to regenerate the adsorption tower. Because no dried compressed air is used for regeneration, compressed air loss is zero, making it the most representative energy-saving model in the desiccant lineup.
Key features
Zero compressed air loss — no compressed air used for regeneration
The most representative energy-saving product
Stable dew point
High-efficiency blower and low differential pressure
Optimal operating cost through dew point-controlled operation
Standard conditions
Inlet air pressure | 7 barg (STD) |
Inlet air temperature | 40℃ (STD) |
Guaranteed outlet dew point | -40℃ (STD) |
Cycle time | 8 hr/cycle (4 hr adsorption, 4 hr regeneration) |
Standard specifications vary with site conditions. Please contact us for your capacity, dew point and pressure requirements.
Options
Modified inlet and outlet conditions (other than dew point)
PLC Controller & Touch Screen
Upper control valves (check valves as standard)
Alternative materials for lower and upper piping and vessels
Dew point-controlled operation (DPOS)
Sales inquiries
We design and build to your capacity, required dew point and installation space. After installation and commissioning, GENEQ remains responsible for maintenance and parts supply.
