Turbo Compressor Maintenance & Overhaul
Turbo Compressor Maintenance & Overhaul
As an official Hanwha Power Systems dealer and certified AMC, GENEQ handles everything from daily inspections to overhauls, cooler tube cleaning and genuine parts supply. A four-level scheduled maintenance program based on running hours prevents unplanned shutdowns.
Equipment that can be repaired, but not opened by just anyone
A turbo compressor is a precision machine whose impellers spin at high speed.
Because the tolerance and assembly of a single part determine performance and service life, disassembly and reassembly of internal parts must be carried out by certified technicians following the prescribed procedures. Unauthorized servicing not only degrades performance but can also void free warranty service even within the warranty period.
As a Hanwha Power Systems Authorized Maintenance Center (AMC), GENEQ takes responsibility for the
entire equipment lifecycle, from compressor sales through installation and commissioning, scheduled inspections, semi and full overhauls, cooler tube cleaning and genuine parts supply .
Maintenance services

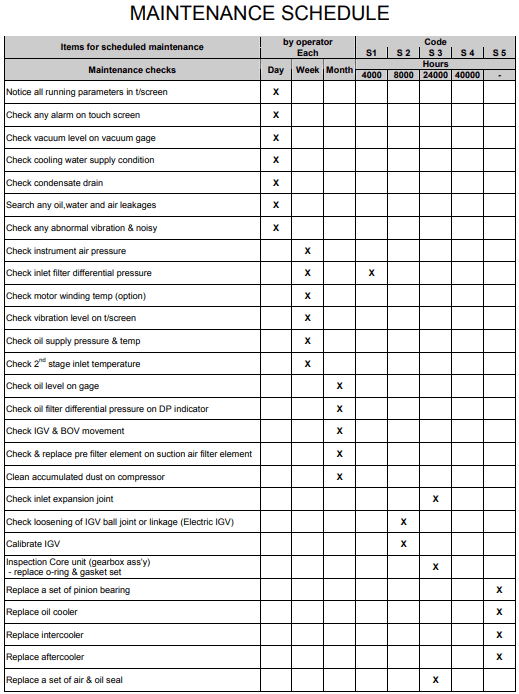

Service | Main scope | Recommended interval |
|---|---|---|
Daily inspection | Oil level and leaks, operating data log, IGV and BOV operation, drain trap check | Daily (operator) |
Scheduled inspection | Oil and filter replacement, instrument calibration, cooler fouling check, coupling and bearing condition | 4,000 / 8,000 hours |
Cooler tube cleaning | Mechanical and chemical cleaning of tubes (water side), fin cleaning (air side) | Once a year (depending on water quality) |

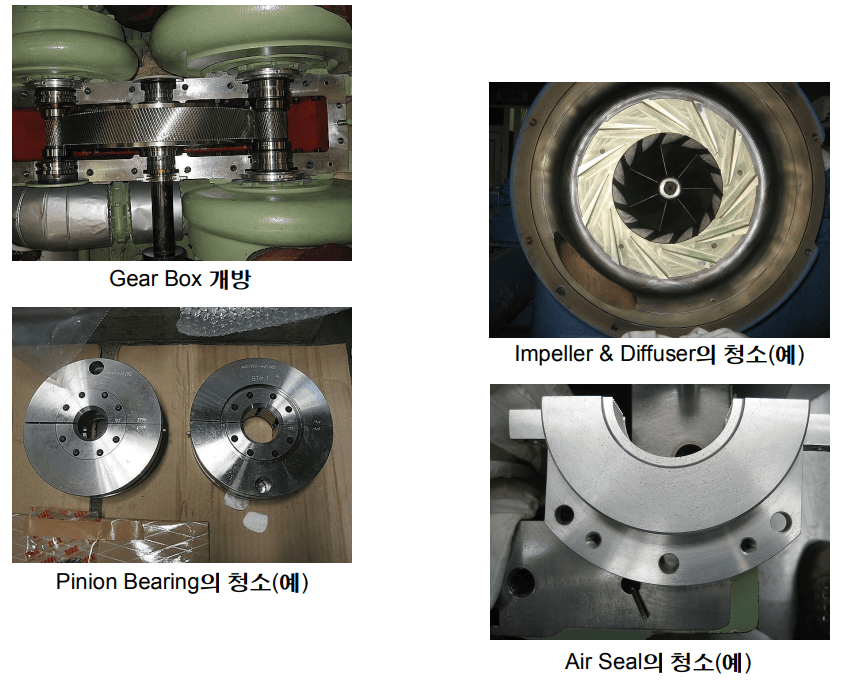

Semi overhaul | Cleaning of the air path (impellers, diffusers, scrolls) without opening the gearbox | Once a year (manufacturer recommendation) |
Full overhaul | Gearbox opened, gear and bearing service, clearance measurement, replacement of O-rings, gaskets and filters | 24,000 / 40,000 hours |
Why scheduled maintenance matters
Basic care: intake filter management, condensate drain management, cooler cleaning, oil changes at the specified interval
Neglect basic care and the sequence is lower efficiency → higher power cost → component damage → unplanned shutdown.
In addition to the Changwon headquarters and Gimhae plant, GENEQ operates the Asan service center and the Pyeongtaek office
Official Hanwha Power Systems dealer and certified AMC — we service to the prescribed procedures with genuine parts and keep full maintenance records
Diagnostic capability — vibration, temperature and performance data reveal faults before they cause failures
Scope of maintenance — not only the compressor itself but also cooler cleaning, cooling water and drain systems, and control panels.
Full equipment lifecycle — if the maintenance findings show that replacement or expansion makes better sense, we also review and propose new compressors and dryers
Maintenance inquiries
Tell us the model of your equipment (unit serial number), accumulated running hours and any recent symptoms (noise, vibration, discharge temperature, current changes, touchscreen screenshots and so on), and we will advise the maintenance level required, the parts needed and the expected schedule.
