SM100 Pro Series Turbo Compressors
SM100 Pro Series Oil-Free Centrifugal Air Compressor
A new product line with aerodynamic components optimized for up to 5% higher efficiency than the previous models. 3,300–36,000 m³/h, 250–2,800 kW, discharge pressure 3.0–13 bar (abs). Custom options include Cu-Zn-free designs for battery plants and outdoor installation.
Up to 5% more efficient than before: the SM100 Pro series
The SM100 Pro series is a new product line with optimized aerodynamic components for higher efficiency and a wider flow range. An environmentally friendly solution that helps reduce CO2 emissions through better energy efficiency, it achieves up to 5% higher efficiency than the previous models.
With no oil in the compression chamber, the 100% oil-free design has achieved ISO 8573-1 Class 0, the highest compressed air quality class, and is used across industries from semiconductors and batteries to steel, chemicals and food.
Key features
Optimized aerodynamic components for higher efficiency and a wider flow range
Lower CO2 emissions through improved energy efficiency
Cu-Zn Free solutions for battery plants
Suitable for outdoor operation
Combo compressor builds and designs tailored to the customer's discharge temperature requirements
Country-specific certified builds available (KGS / PED / TRCU / UKRSEPRO / CRN / CSA and others)
Specifications
Model | SM3100 Pro | SM4100 Pro | SM5100 Pro | SM6100 Pro | SM7100 Pro | |
|---|---|---|---|---|---|---|
Capacity | ㎥/hr | 3,300~5,690 | 4,340~9,030 | 7,350~15,150 | 11,630~25,890 | 24,500~36,000 |
CFM | 1,950~3,240 | 2,480~5,160 | 4,200~8,670 | 9,800~14,800 | 14,400~21,150 | |
Power | kW | 250~600 | 460~900 | 570~1,500 | 870~2,520 | 1,000~2,800 |
HP | 270~800 | 620~1,220 | 770~2,015 | 1,170~3,380 | 1,340~3,753 | |
Discharge pressure | bar A | 3.0~13 | 3.5~11.4 | |||
Psi A | 43~188 | 50~165 | ||||

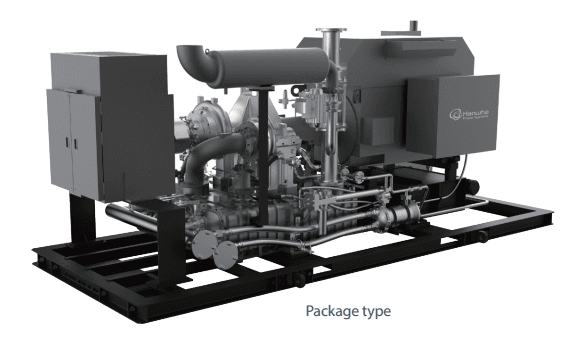

Dimensions (L×W×H), mm | Package model | 5,250×2,250×2,500 | 5,500×2,250×2,500 | 6,250×2,250×2,550 | 7,100×2,250×2,550 | - |

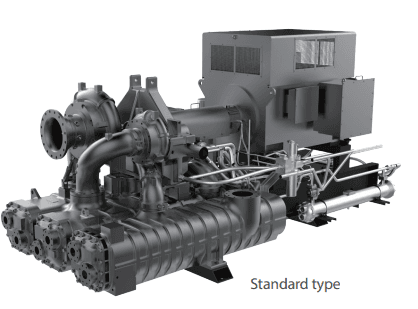

Standard model | 3,210×2,150×1,920 | 3,800×2,300×2,050 | 4,750×2,490×2,130 | 5,290×2,400×2,420 | 5,700×2,800×2,950 | |
100% oil-free (ISO 8573-1 Class 0) · Certifications: ISO 9001 / ISO 14001 / ISO 45001 / CE (DoC) / PED /
UL · Specifications are subject to change without notice.
Sales and service inquiries
As a Hanwha Power Systems Authorized Maintenance Center (AMC), GENEQ covers the full lifecycle of your compressed air equipment: compressor sales, installation and commissioning, precision diagnostics and overhauls, and genuine parts supply. We select the model that fits your operating pressure, flow and installation conditions.
