SM Series Turbo Compressors
SM Series Oil-Free Centrifugal Air Compressor
The standard industrial air compressor model, designed to the API 672 code. 3,300–21,000 m³/h, 230–2,650 kW, discharge pressure 3.5–25 bar (abs). Custom builds available, including high-pressure, nitrogen and booster compressors.
The standard in industrial air compressors: the SM series
The SM series is the standard industrial air compressor model, built on high stability and operating reliability.
Designed to the API 672 code, this high-quality air compression system supports a wide discharge pressure range up to 25bar A.
With no oil in the compression chamber, the 100% oil-free design supplies clean compressed air to ISO 8573-1 Class 0.
Key features
High-quality air compression system designed to the API 672 code
High-pressure compressors of 14 bar (abs) and above available
Nitrogen compressors available (carbon seal type)
Combo and booster compressors available
Country-specific certified builds available (KGS / PED / TRCU / UKRSEPRO / CRN / CSA and others)
Consumable parts are interchangeable across all models for the shortest possible lead times (minimizing troubleshooting downtime)
Specifications
Model | SM3000 | SM4000 | SM5000 | SM6000 | |
|---|---|---|---|---|---|
Capacity | ㎥/hr | 3,300~5,300 | 5,300~8,400 | 8,400~15,000 | 15,000~21,000 |
CFM | 1,950~3,100 | 3,100~4,950 | 4,950~8,850 | 8,850~12,400 | |
Power | kW | 230~710 | 360~1,200 | 560~1,800 | 940~2,650 |
HP | 300~950 | 480~1,600 | 750~2,410 | 1,260~3,550 | |
Discharge pressure | bar A | 3.5~25 | |||
Psi A | 50~364 | ||||

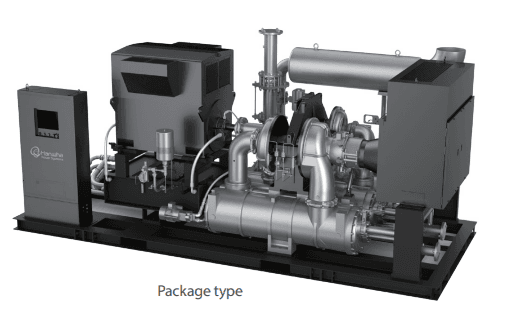

Dimensions (L×W×H), mm | Package model | 4,750×2,100×2,500 | 5,100×2,250×2,500 | 5,450×2,250×2,500 | 6,200×2,300×2,550 |

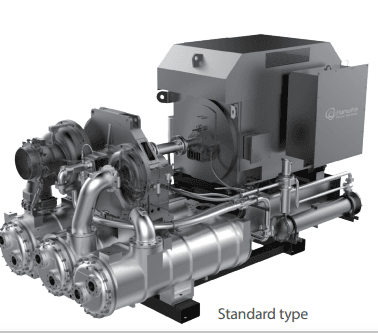

Standard model | 3,150×1,980×2,100 | 3,780×2,080×2,130 | 3,960×2,100×2,350 | 4,480×2,220×2,520 | |
100% oil-free (ISO 8573-1 Class 0) · Certifications: ISO 9001 / ISO 14001 / ISO 45001 / CE (DoC) / PED /
UL · Specifications are subject to change without notice.
Sales and service inquiries
As a Hanwha Power Systems Authorized Maintenance Center (AMC), GENEQ covers the full lifecycle of your compressed air equipment: compressor sales, installation and commissioning, precision diagnostics and overhauls, and genuine parts supply.
