Hanwha Power Oil-Free Turbo (Centrifugal) Air Compressors
Hanwha Power Oil-Free Centrifugal Air Compressor
Hanwha Power's 100% oil-free turbo (centrifugal) air compressors. ISO 8573-1 Class 0 clean air for high-reliability industries such as semiconductors, batteries, steel and chemicals, with GENEQ, a Hanwha-certified AMC, responsible for maintenance and parts.
GENEQ supplies the oil-free turbo (centrifugal) air compressors of Hanwha Power (formerly Hanwha Power Systems) and, as a
Hanwha-certified AMC (Authorized Maintenance Center), takes responsibility for the entire equipment lifecycle, from installation through operation, diagnostics, maintenance and parts.
100% oil-free, ISO 8573-1 Class 0 clean air provides the optimal compressed air supply for high-reliability industries such as semiconductors, batteries, steel, chemicals and food.
100% oil-free, ISO 8573-1 Class 0 clean air
The proprietary integrally geared design means
no oil ever contacts the compression stages, giving a 100% Oil-Free design. It has achieved ISO8573-1 Class 0, the highest compressed air purity class,
and is used reliably not only in contamination-sensitive semiconductor, battery, food and pharmaceutical processes but across industries such as steel and chemicals.

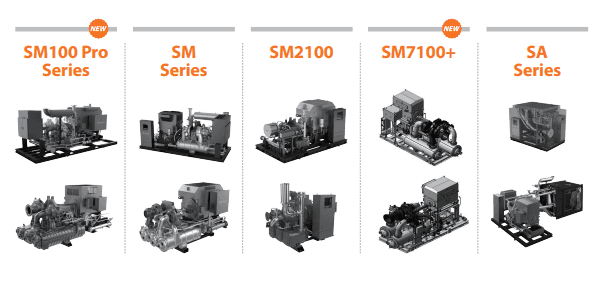

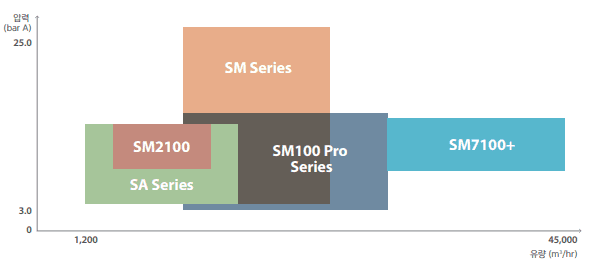

Product lineup
Series | Capacity (m³/h) | Power (kW) | Discharge pressure (bar A) | Features |
|---|---|---|---|---|
SM100 Pro | 3,300 ~ 36,000 | 250 ~ 2,800 | 3.0 ~ 13 | New model, up to 5% higher efficiency than its predecessor |
SM | 3,300 ~ 21,000 | 230 ~ 2,650 | 3.5 ~ 25 | High-pressure (25 bar), API 672-based standard model |
SM2100 | 1,400 ~ 3,550 | 150 ~ 335 | 5.0 ~ 11.4 | Compact, low-flow, plug-and-play package |
SM7100+ | 32,000 ~ 45,000 | 2,300 ~ 4,000 | 5.0 ~ 11.5 | Very high flow, advanced engineered design |
SA | 1,200 ~ 5,500 | 150 ~ 580 | 3.5 ~ 11.4 | Modern engineering, AGMA 12/13 gears |

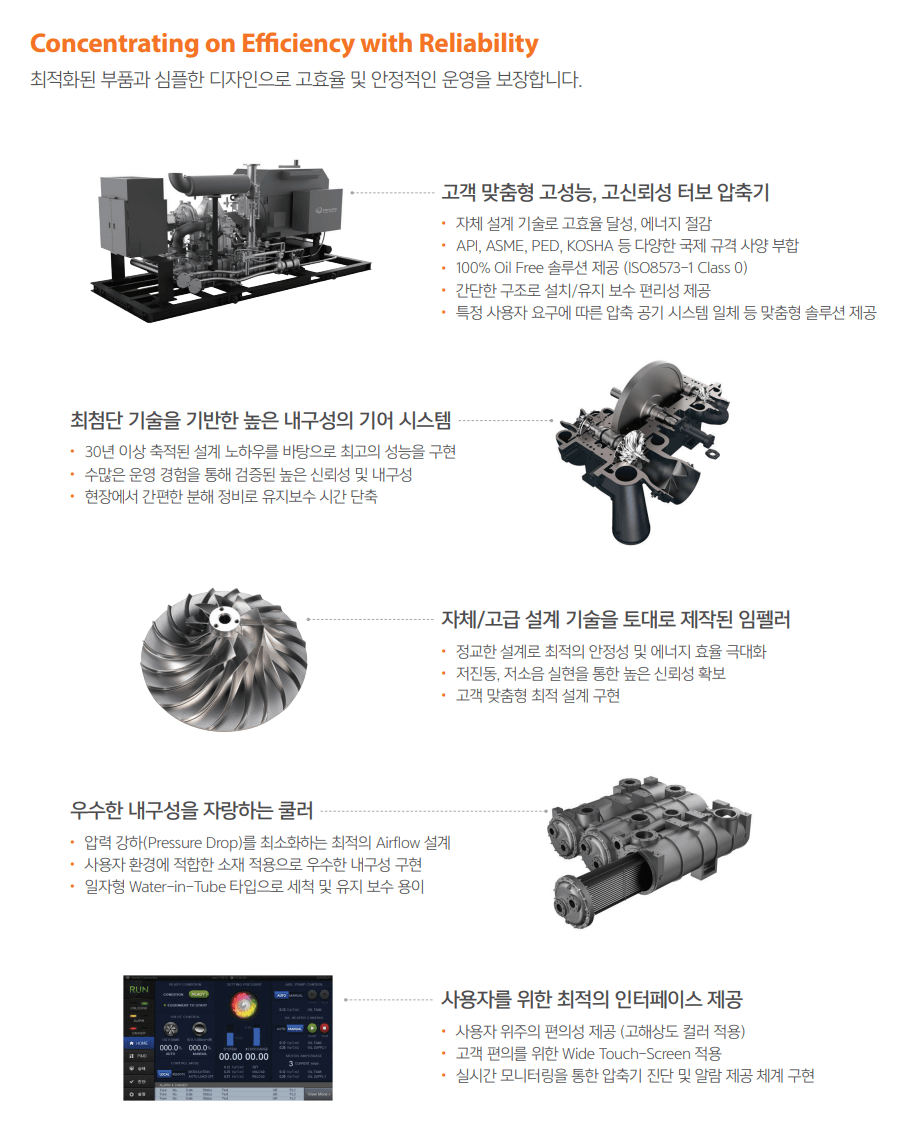

Key technical features
Highly durable gear system
Based on more than 30 years of design expertise. Proven reliability and durability, with on-site disassembly and servicing that shortens maintenance time.
In-house designed impellers
High-efficiency 5-axis machined impellers deliver low vibration and low noise while maximizing energy efficiency.
Highly durable coolers
Airflow designed to minimize pressure drop, with a straight water-in-tube design that makes cleaning and maintenance easy.
User interface
A wide touchscreen HMI provides real-time monitoring, diagnostics and alarms.
Certifications and standards
Air purity: ISO8573-1 Class 0 (100% Oil-Free)
Design codes: API672 · ASME · PED · KOSHA
Country-specific certification: KGS / PED / TRCU / UKRSEPRO / CRN / CSA and others
Quality, environment and safety: ISO 9001 · ISO 14001 · ISO 45001 · CE(DOC) · UL
Detailed specifications by series

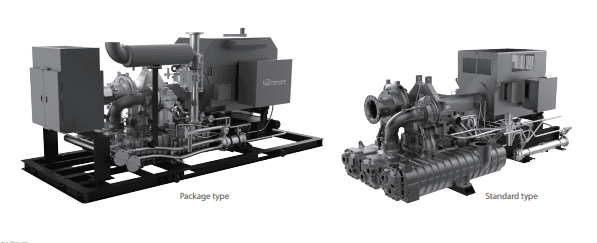

SM100 Pro Series
Model | SM3100 Pro | SM4100 Pro | SM5100 Pro | SM6100 Pro | SM7100 Pro |
|---|---|---|---|---|---|
Capacity m³/h | 3,300~5,690 | 4,340~9,030 | 7,350~15,150 | 11,630~25,890 | 24,500~36,000 |
Power kW | 250~600 | 460~900 | 570~1,500 | 870~2,520 | 1,000~2,800 |
Discharge pressure bar A | 3.0~13 | 3.0~13 | 3.0~13 | 3.0~13 | 3.5~11.4 |

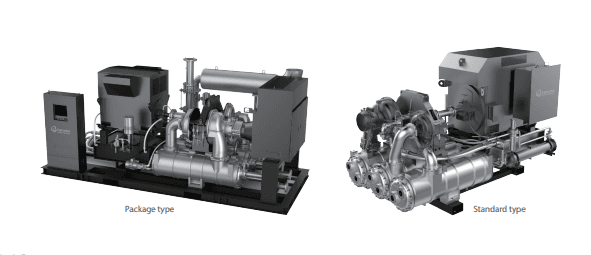

SM Series
Model | SM3000 | SM4000 | SM5000 | SM6000 |
|---|---|---|---|---|
Capacity m³/h | 3,300~5,300 | 5,300~8,400 | 8,400~15,000 | 15,000~21,000 |
Power kW | 230~710 | 360~1,200 | 560~1,800 | 940~2,650 |
Discharge pressure bar A | 3.5~25 | 3.5~25 | 3.5~25 | 3.5~25 |

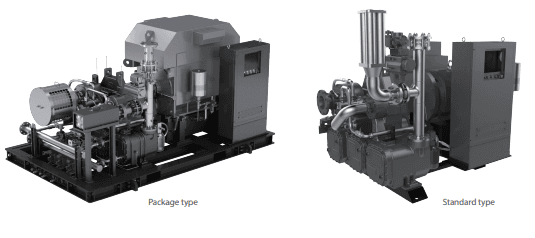

SM2100 / SM7100+ / SA
Model | Capacity m³/h | Power kW | Discharge pressure bar A |
|---|---|---|---|
SM2100 | 1,400~3,550 | 150~335 | 5.0~11.4 |
SM7100+ | 32,000~45,000 | 2,300~4,000 | 5.0~11.5 |
SA2100 | 1,200~2,890 | 150~260 | 3.5~11.4 |
SA3100 | 3,750~5,500 | 400~580 | 3.5~11 |
Industries served
Steel and metals · Oil and gas · Petrochemicals · Power generation (CCPP) · Air separation (ASU) · General industry (semiconductors, electronics, automotive, shipbuilding, food, glass, paper)
From installation to maintenance: GENEQ, a Hanwha-certified AMC

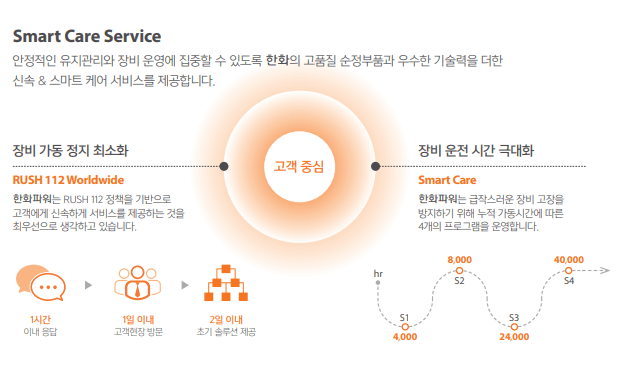

As a Hanwha-certified AMC, GENEQ detects and resolves compressor faults before they cause downtime, through preventive maintenance programs and a 24-hour response system.
Four-level Smart Care program — S1 4,000 h · S2 8,000 h · S3 24,000 h · S4 40,000 h
Rapid response (RUSH 112) — response within 1 hour · site visit within 1 day · initial solution within 2 days

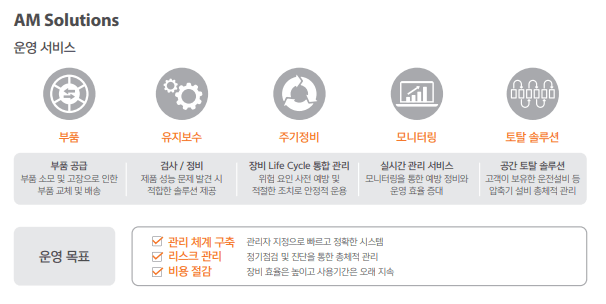

Parts · inspection and maintenance · monitoring · total compressor room solutions
Beyond supply: a lifetime partner for your equipment
For a compressor, it is not the purchase price but the operation and maintenance that follow that determine total cost of ownership (TCO). As a Hanwha-certified AMC, GENEQ handles everything from installation to preventive maintenance, genuine parts and condition monitoring through a single point of contact. Precision diagnostics prevent sudden failures and production disruptions in advance, and optimized operation reduces energy costs as well.
Minimal downtime — planned maintenance prevents unexpected shutdowns.
Lower total cost — genuine parts and precision diagnostics extend equipment life and save energy.
Less management burden — supply, maintenance, parts and monitoring handled in one place.
If you need a lifetime partner for your compressed air equipment, GENEQ is ready to be that partner.
